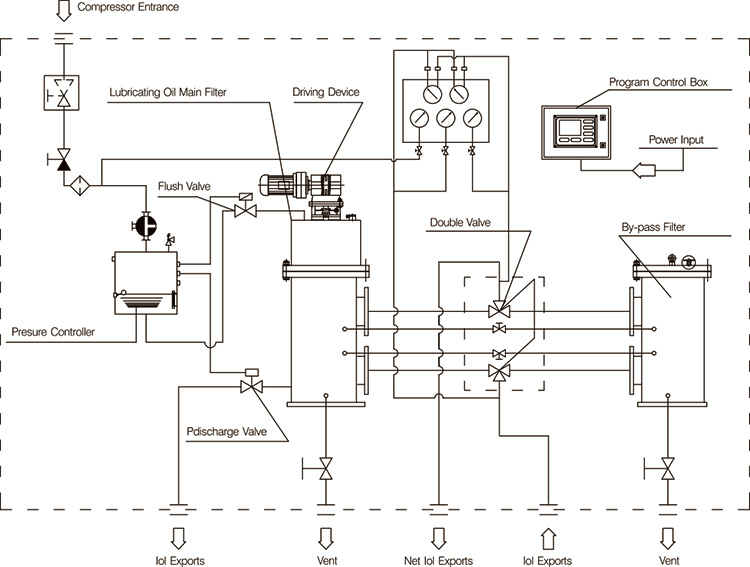

System Principle Diagram
Design
HYLQ Model self-cleaning lubricating oil filter for Uninterrupted filtration, High pressure self cleaning, Double chamber work design model. Equipped with multi cavities element and the emergency bypass filter, With its unique airdraulic pressurization flushing, The use of compressed air is different from the traditional method of back-flushing with liquid . Increase the force of back flushing greatly, Make the filter has the special effect with high speed and more clean . At the same time, a automatic integrate is designed in operation. It turn into the automatic opeing and closing flushing precedure by the pressure difference between the inlet and outlet, Or by timing, Therefore the filter works for a long time.
L.O Self Cleaning Filter Main Perfromanoce Parameters
Model Rated Capacity Tering Precision Working Pressure Working Temperature Actio Pressure Difference Alarm Pressure Difference Air Pressure
HYLQ250 250m3/h 20μ 0.8MPa ≤85°C 0.09MPa 0.12MPa 0.4-1.OMPa
HYLQ150 150m3/h 20μ 0.8MPa ≤85°C 0.09MPa 0.12MPa 0.4-1.OMPa
HYLQ100 100m3/h 20μ 0.8MPa ≤85°C 0.09MPa 0.12MPa 0.4-1.OMPa
