Structure Function

The separator module can realize operations of sealing, displacing and deslagging through electromagnetic valve, while its air pressure three-way valve and flow regulating valve are used for media separating. The temperature can be automatically adjusted, and the automatic alarm can be carried out through the temperature sensing signal and the pressure sensing signal. The unit module that has a high degree of intelligence and humanization design is operated by touch screen, showing the dynamic operations with the function of fault analysis and fault memory. It could be extended to central control room to realize remote monitoring.

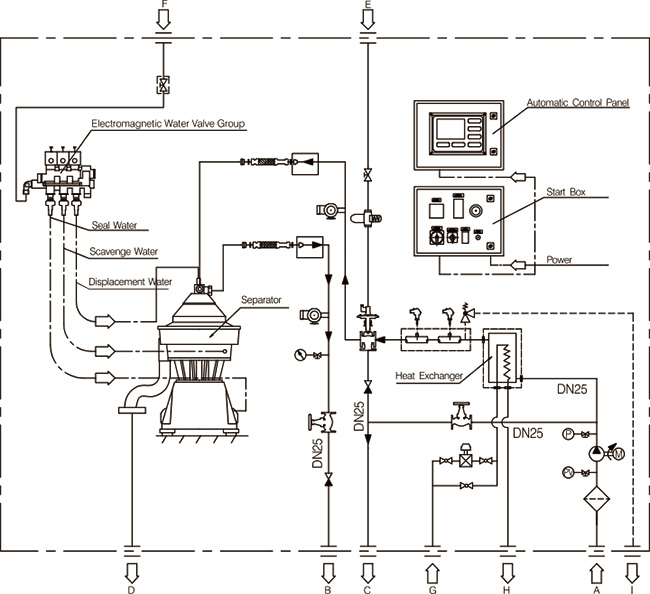

Separator Interface Table

CODE	NAME	DIAMETER
A	Dirty Oil Inlet	DN25
B	Purified Oil Outlet	DN25
C	Circulating Oil Outlet	DN25
D	Drain Contamination Outlet	DN50
E	Compressed Air Inlet	DN8
F	Operating Water Inlet	DN15
G	Heat Source Inlet	DN25
H	Heat Source Outlet	DN25
I	Drain Outlet Oil Collection Pan	G3/4″

Separator Parameters Table

Separator Model	HPA605	HPA615
Separator Unit Model	HM605-A1	HM615-A1
Separator Speed（r/min）	9512	9512
Rated Separation（L/h）	2000	3000
Effective Separation(L/h)	2000（0#柴油） 1300（180cst/50℃） 950（380cst/50℃） 860（SAE40）	3000（0#柴油） 2000（180cst/50℃） 1600（380cst/50℃） 1450（SAE40）
Net Oil Output Pressur	0.15-0.2MPa
Emissions Way	自動排渣、自動控制、比重環(huán)形式
Separator Motor	ABB
Separator Motor Power	2.2KW	3KW
Separator Motor Speed	50Hz 2850r/min or 60Hz 3450r/min
Motor Protection Grade	IP55
A1/A2	F級
Power Supply	AC380V/50HZ or 440V/60HZ
Fresh Water Pressure	0.2-0.5MPa
Module Weight（kg）	600	650
Module Size (L ×W ×H)	1360×1100×1250
