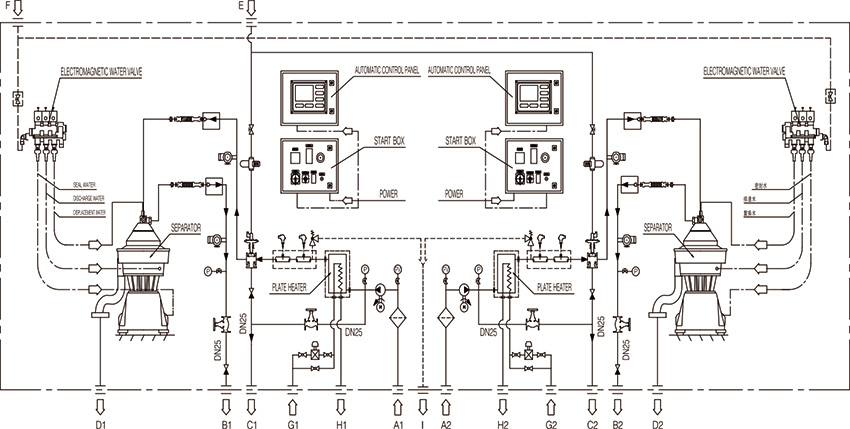

System Principle Diagram
Excellent performance, superior efficiency
The drum that precisely calculated and designed can ensure the best separation performance and the first-class separation efficiency.
High reliability
Advanced interior design, together with Huayi’s leading technology, greatly improves the reliability of the system and allow you to use it safely.
Easy&Fast installation
The separator module is small and exquisite with convenient connecting joints. Thus, the locationand installation process of the machine room is obviously simplified.
Easy operation and maintenance
PLC controller is supplied with products that has intuitive menu navigation design and function of “One button” shutdown.Its modularized structure is conducive for faster troubleshooting and recovery progresses.
Low management cost
Huayi separation equipment have least oil loss and minimum energy consumption when comparing to similar products in the market. Basically it does not need any maintenance, while its soft coupling drive hardly has produces the traditional mechanical wear. Selection of Huayi products can ensure lowest cost for the operation period, and realize return on investment in the shortest time.
Separator Interface Table
| CODE |
NAME |
DIAMETER |
| A1/A2 |
Dirty Oil Inlet |
DN25 |
| B1/B2 |
Purified Oil Outlet |
DN25 |
| C1/C2 |
Circulating Oil Outlet |
DN25 |
| D1/D2 |
Drain Contamination Outlet |
DN50 |
| E |
Compressed Air Inlet |
DN8 |
| F |
Operating Water Inlet |
DN15 |
| G1/G2 |
Heat Source Inlet |
DN25 |
| H1/H2 |
Heat Source Outlet |
DN25 |
| I |
Drain Outlet Oil Collection Pan |
G3/4″ |
Separator Parameters Table
| Separator Model |
HPA605 |
HPA615 |
| Separator Unit Model |
HM605-A2 |
HM615-A2 |
| Separator Speed（r/min） |
9512 |
9512 |
| Rated Separation（L/h） |
2000×2 |
3000×2 |
| Effective Separation(L/h) |
2000×2（0#柴油）
1300×2（180cst/50℃）
950×2（380cst/50℃）
860×2（SAE40） |
3000×2（0#柴油）
2000×2（180cst/50℃）
1600×2（380cst/50℃）
1450×2（SAE40） |
| Net Oil Output Pressur |
0.15-0.2MPa |
| Emissions Way |
自動排渣、自動控制、比重環(huán)形式 |
| Separator Motor |
ABB |
| Separator Motor Power |
2.2KW |
3KW |
| Separator Motor Speed |
50Hz 2850r/min or 60Hz 3450r/min |
| Motor Protection Grade |
IP55 |
| A1/A2 |
F級 |
| Power Supply |
AC380V/50HZ or 440V/60HZ |
| Fresh Water Pressure |
0.2-0.5MPa |
| Module Weight（kg） |
1200 |
1300 |
| Module Size (L ×W ×H) |
2400×1100×1250 |
